Description
Unmatched Versatility for Every Industry
The Niton XL5 Plus isn’t just an upgrade; it’s a technological leap. At XRF Dubai, we recommend this model for elite operations that require lab-quality geochemistry and metal identification in a truly pocket-sized format.

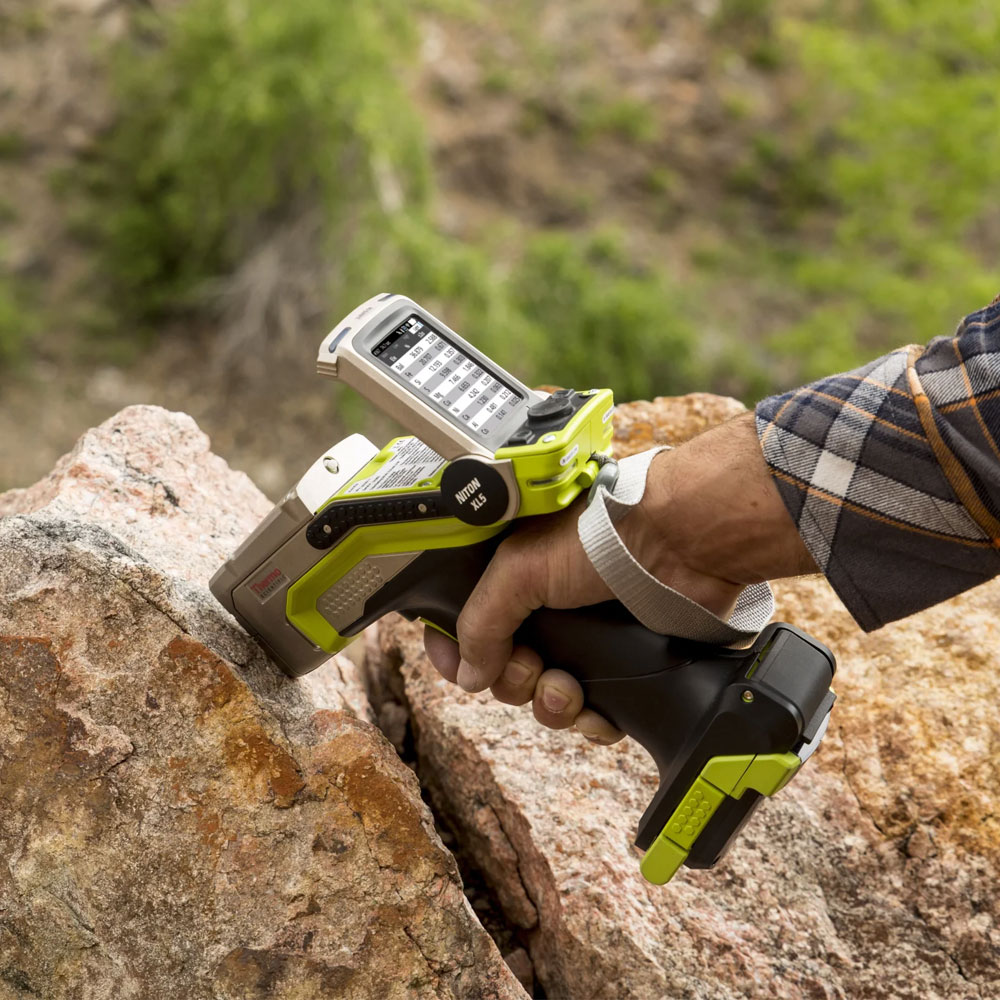

1. Next-Gen Mining and Soil Testing
The XL5 Plus is a powerhouse for mining exploration. Its 5W tube and extra-large drift detector allow you to identify light elements and trace minerals with incredible speed. For soil testing, it provides real-time heavy metal screening, allowing environmental teams to map polluted areas instantly with GPS-tagged results.
2. High-Speed Scraps and Recycling
In the high-volume scraps and recycling industry, the XL5 Plus is a game-changer. It identifies pure metals and complex alloys in a heartbeat. Because it is so lightweight, operators can use it all day without fatigue, and the miniaturized nose makes it easy to test small components or pieces buried deep in a scrap pile.
3. Elite Gold Testing and Precious Metals
For high-end refineries and bullion dealers, the XL5 Plus offers the most precise gold checking available in a handheld. The integrated macro and micro cameras allow you to document the exact spot you are testing, while the 50kV power ensures that you are getting an accurate reading deep into the metal, effectively identifying gold-plated counterfeits.
4. Manufacturing and Metal Fabrication
Beyond just gold testing, the XL5 Plus is an essential tool for Positive Material Identification (PMI). Verify alloy grades in manufacturing or measure the thickness of metal coatings with a single, versatile device.
Technical Specifications
| Feature | Details |
| X-Ray Source | Ag Anode (6-50kV, 5W Max) – Most Powerful in its Class |
| Weight | 1.3 kg (2.8 lb) including battery |
| Detector | Extra Large Area Silicon Drift Detector (Graphene Window) |
| Connectivity | WiFi, Bluetooth™, and USB-C |
| Imaging | Dual Cameras (Macro and Micro) for precise positioning |
| Storage | 16 GB Internal (approx. 130,000 readings with spectra) |
| IP Rating | IP54 certified (Splash and Dust Proof) |
| Battery | Hot-Swap 12V Lithium-Ion |
| Display | Tilting color touchscreen for easy viewing |
