Description

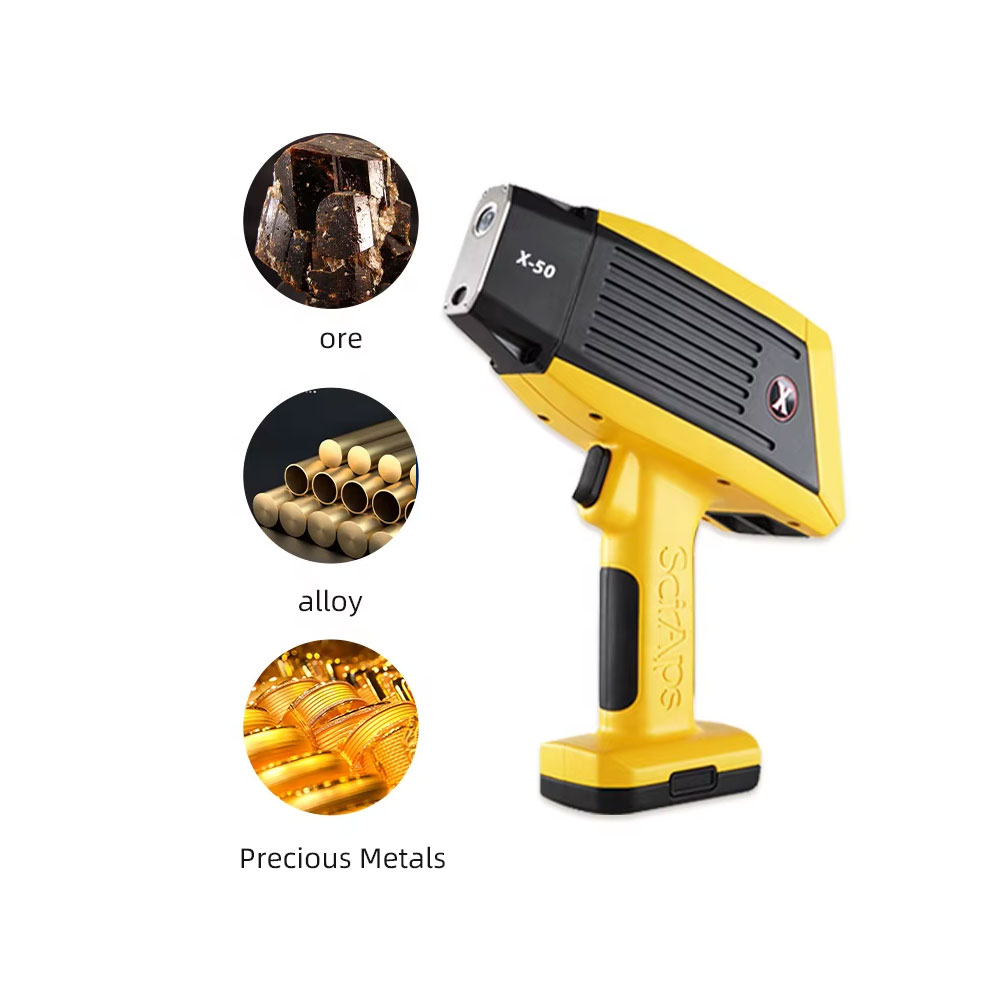

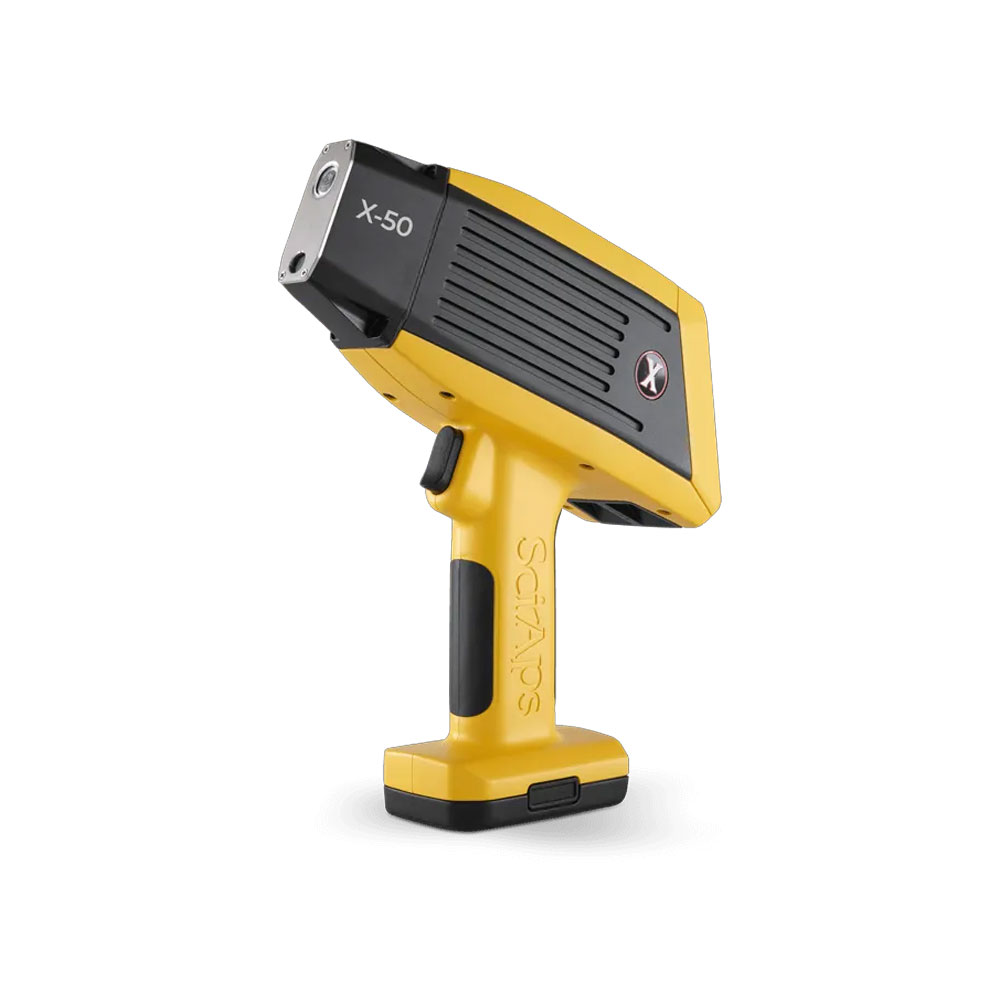

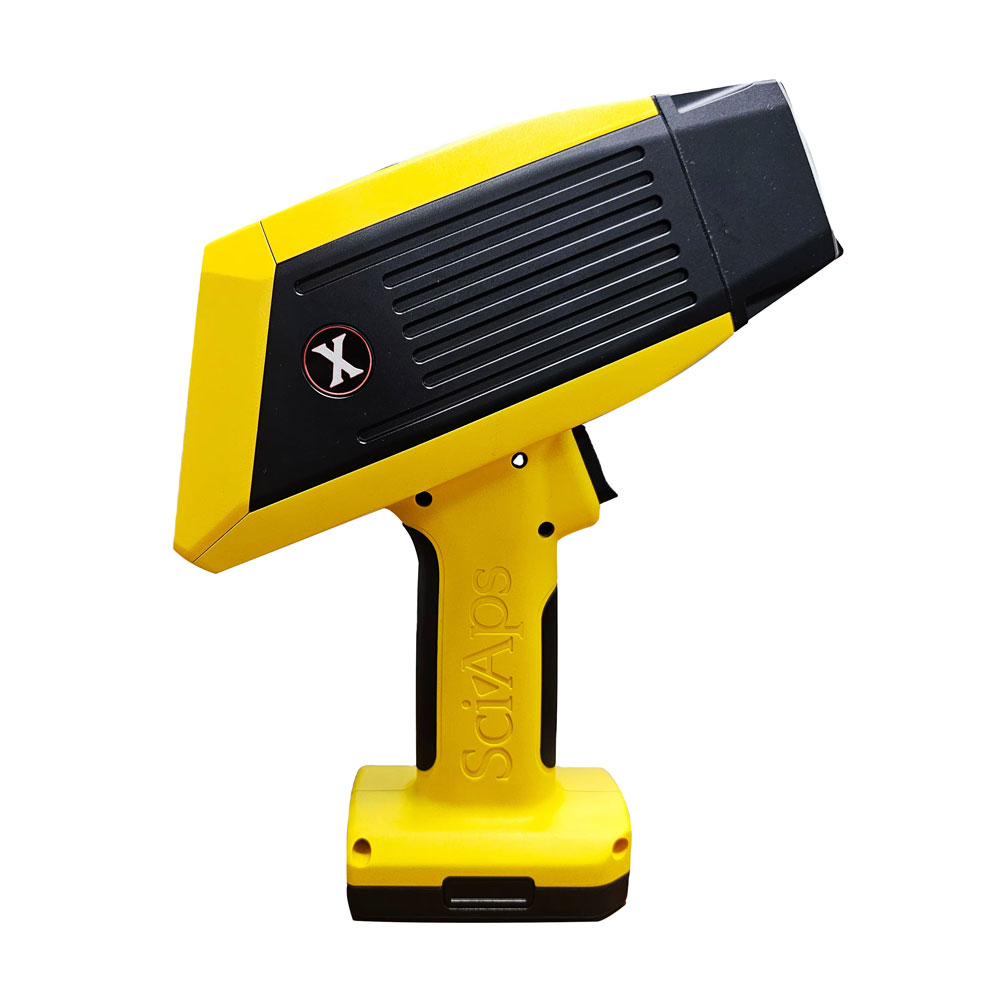

Why the SciAps X-50 is the Ultimate Workhorse
At XRF Dubai, we understand that not every job requires a “top-of-the-line” price tag, but every job does require accuracy. The X-50 is built for high-volume environments where speed and durability are the top priorities.
1. High-Volume Scrap Metal Recycling
In the scraps and recycling yard, time is money. The X-50 is specifically tuned for the rapid sorting of stainless steels, high-temp alloys, and red metals. Its redesigned housing is “beefier” and more rugged, standing up to the physical demands of industrial recycling while providing the fastest results in its detector class.

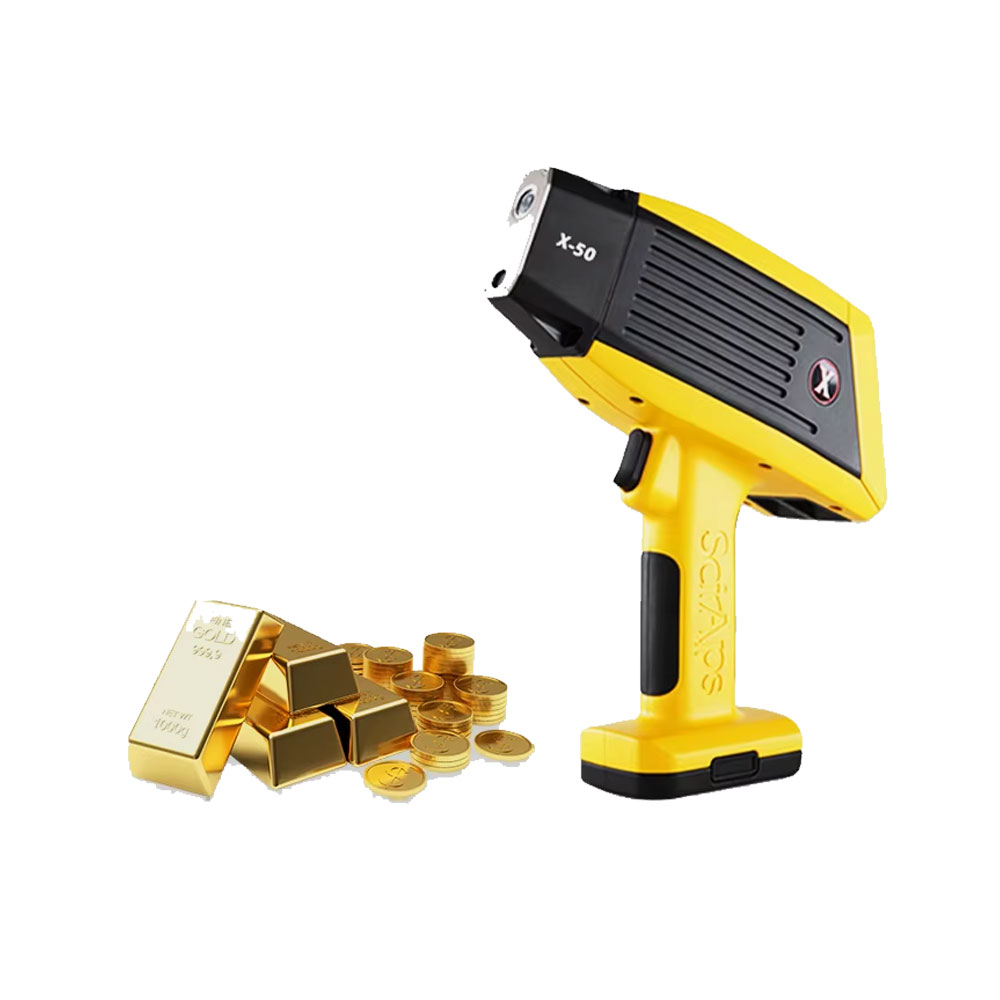

2. Reliable Gold Checking and Precious Metals
For businesses focused on gold testing, the X-50 delivers exceptional clarity. It precisely identifies the elemental signature of gold, silver, platinum, and palladium. The built-in high-resolution camera allows you to target specific spots on jewelry or coins, while the macro-camera stores photos of the samples for your digital records.
3. Efficient Mining and Soil Testing
The X-50 is a versatile tool for mining and soils. With a 50kV tube option, it provides deep penetration and high sensitivity for heavy metal detection in geochemical exploration. It’s an ideal partner for on-site soil testing, allowing environmental teams to screen for contaminants like Lead (Pb), Mercury (Hg), and Arsenic (As) instantly.
4. Modern Android Connectivity
Don’t let the “classic” name fool you. The X-50 runs on a modern Android OS with a large 3.5-inch touchscreen. With WiFi, Bluetooth, and USB connectivity, you can sync your data to the SciAps Cloud or use the Profile Builder PC software to generate professional reports for your clients in Dubai and beyond.
Technical Specifications
| Feature | Details |
| Weight | 1.4 kg (3.1 lbs) with battery |
| X-Ray Source | 4W, 40kV Rh (Alloys) or 50kV (Mining/Soil) |
| Detector | 7 mm² Silicon Drift Detector (SDD) |
| Analytical Speed | Up to 2X faster than standard SDD platforms |
| Battery Life | On-board Li-ion with 60-second Hot-Swap |
| Display | 3.5-inch High-Res color capacitive touchscreen |
| Operating Temp | -12°C to 54°C (10°F to 130°F) |
| Cameras | Internal high-res targeting camera + Macro photo camera |
| Connectivity | WiFi, Bluetooth, and USB |
Standard Element Package (By Application)
- Alloy/PMI: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Mo, W, Au, Ag, and more.
- Precious Metals: Gold (Au), Silver (Ag), Platinum (Pt), Palladium (Pd), Rhodium (Rh), etc.
- Mining & Soil: K, Ca, Ti, V, Cr, Mn, Fe, Cu, Zn, As, Se, Pb, U, and more.
Included with Purchase: Locking shielded carrying case, rechargeable Li-ion battery, AC power adapter, external 316 stainless check standard for calibration, and safety lanyard.
